Product Details
Tensile strength
62000 psi
Welding current range
180 A
Welding Electrode general purpose electrode can be used suitably on AC and DC (±) in all position. Our Welding Electrode gives stable arc, little spatter and easily detachable slag. Weld metal has excellent mechanical properties and quality is radiographic.
Used For :
- Structural steelwork
- Workshop and maintenance welding
Weld Metal Composition
| Elements | C | Mn | Si | S | P |
| Percentage (%) | 0.080 | 0.45 | 0.20 | 0.022 | 0.020 |
Mechanical Properties
| Yield Strength N/mm2 | 440 |
| Tensile Strength N/mm2 | 490 |
| % Elongation | 25.00 |
Size and Recommended Current Range
| Size (mm) | 2.50 | 3.20 | 4.00 | 5.00 |
| AC/DC (Amps.) | 60 - 90 | 100 - 140 | 140 - 180 | 180 - 230 |
| Polarity | ||||

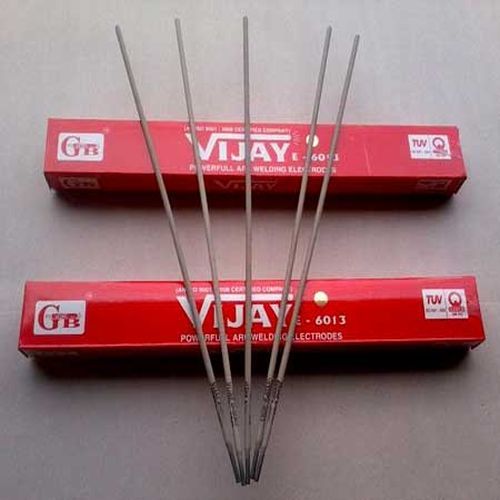

Looking for "Vijay E-6013 Welding Electrodes" ?
